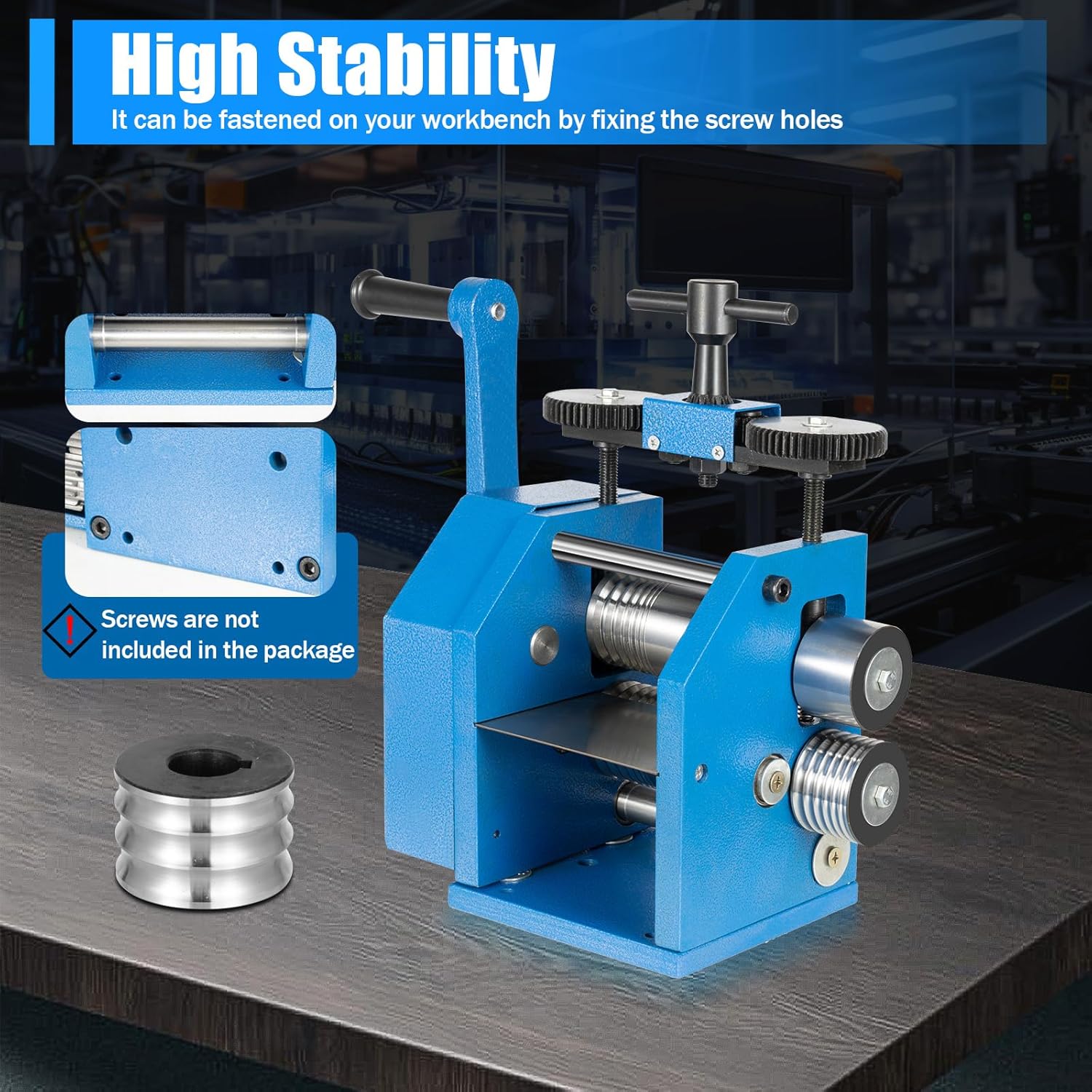

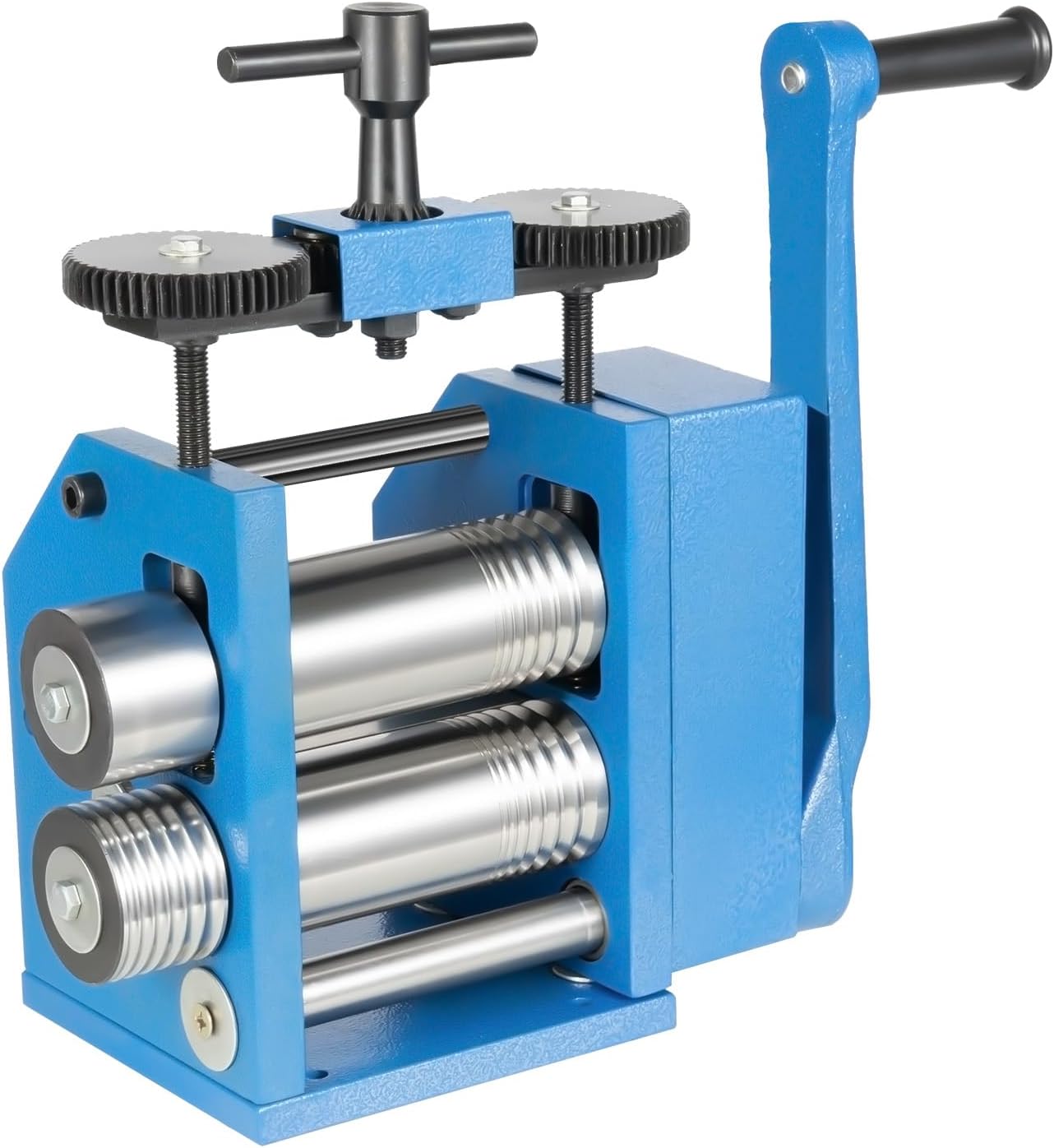

Jewelry Rolling Mill Machine, 3 inch Manual Combination Press Tabletting Tool, Gear Ratio 3:1 Jewelry DIY Presser Rolling Mills, Metal Ornament Making Tool for Gold, Silver, Copper, Aluminum

Details

Extra Long Hand Crank: The long crank with a cast iron body part and a durable plastic grip allows for even force application and effortless, smooth use.

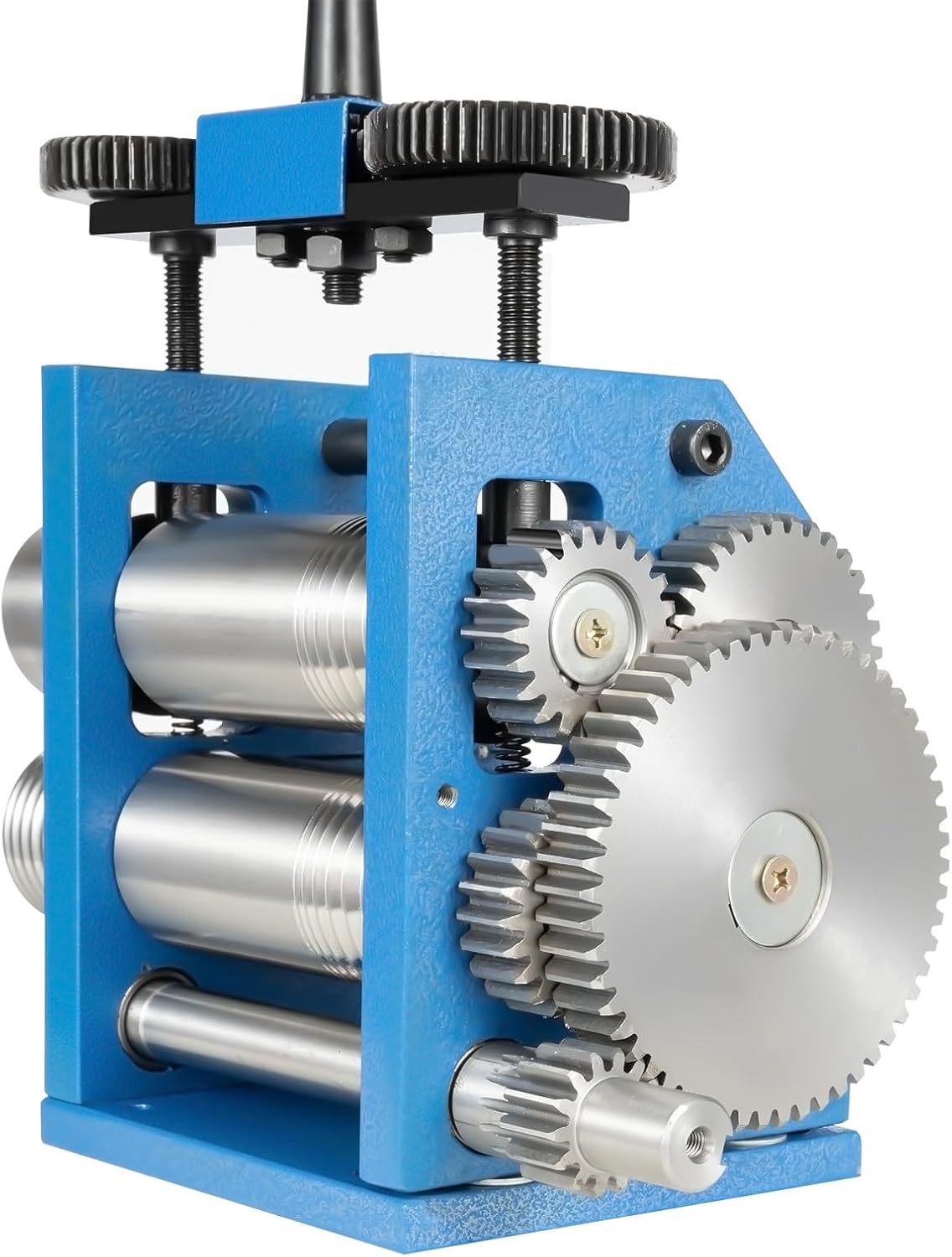

Gear Cover: It's made of high-quality sheet metal on the side of the machine and designed to protect the gears and you from hidden danger under standard operation.

Application

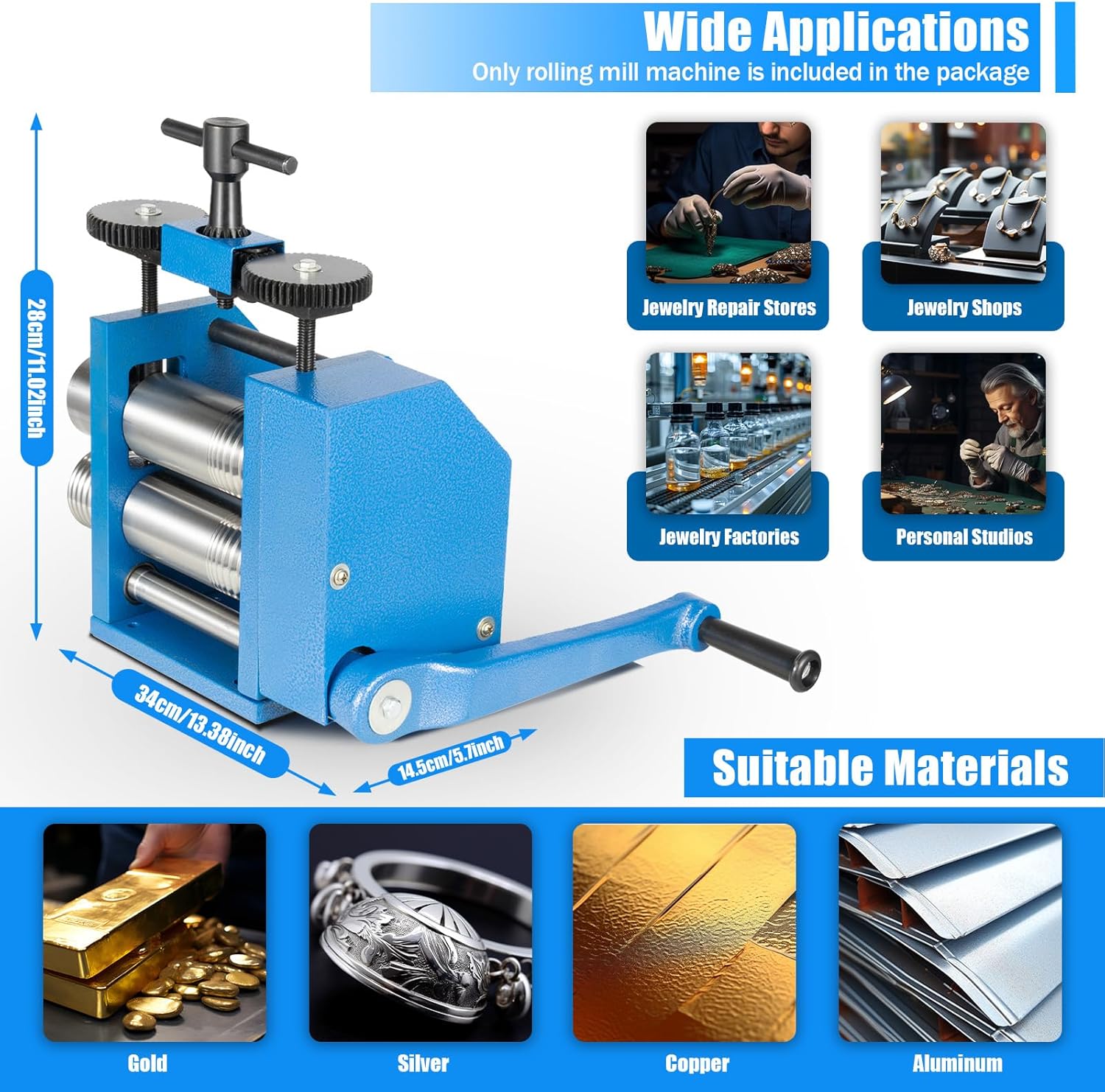

It is mainly used in the jewelry industry for transforming malleable metals like gold, silver, copper, and aluminum into thin sheets, square wires, and half-round shapes. It is ideal for jewelers and craftsmen to make exquisite jewelry.

Specification

Color: Blue

Main Material: 40Cr, Sheet Metal, Plastic, Cast Iron

Treatment: Spray Paint, Hardening Heat Treatment Process

Assembly Required: Yes

Gear Ratio: 3:1

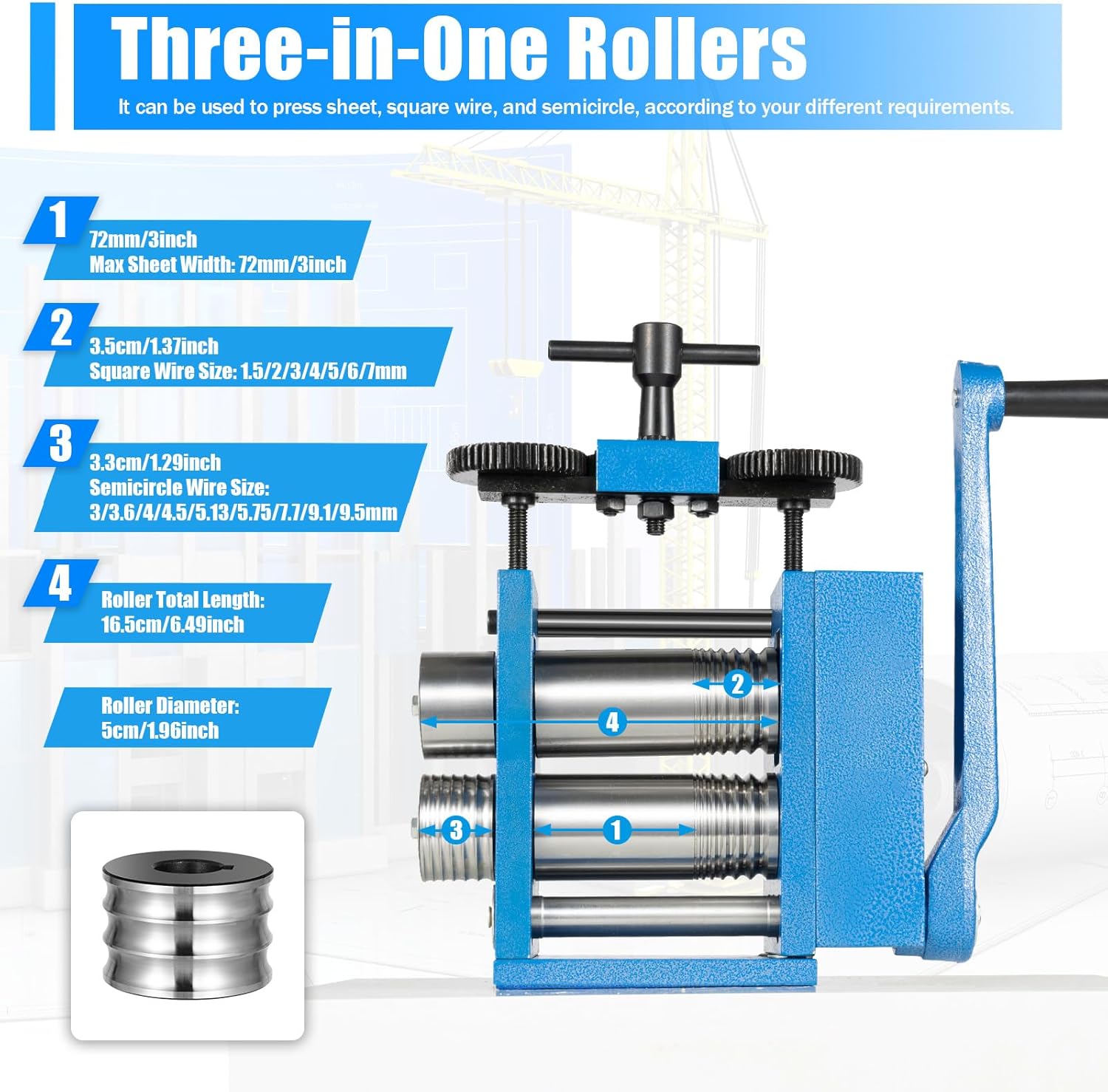

Roller Length(for Sheet): 72mm/3inch

Square Grooves Length: 3.5cm/1.37inch

Semicircle Grooves Length: 3.3cm/1.29inch

Roller Total Length: 16.5cm/6.49inch

Roller Diameter: 5cm/1.96inch

Max. Space of Two Rollers: 9.38mm/0.36inch

Square Wire Size: 1.5/2/3/4/5/6/7mm

Semicircle Wire Size: 3/3.6/4/4.5/5.13/5.75/7.7/9.1/9.5mm

Max Sheet Width: 72mm/3inch

Hand Crank Length: 28cm/11.02inch

Gross Weight: 18.6kg/41lbs

Net Weight: 17.7kg/39.02lbs

Product Size: 34*14.5*28cm/13.38*5.7*11.02inch

Package Size: 35*28*32cm/13.77*11.02*12.59inch

Package Included

1*Jewelry Rolling Mill Machine

1*Replaceable Semicircle Mold

All Accessories for Assembly

Notes

1. Please note that screws are not included in the package.

2. When using this machine, please add lubricating oil into the connection ports on both ends of the roller once or twice a day.

3. Please peel away the plastic wrap on the rollers before using.
